Clutch Aligner

CH121407-D

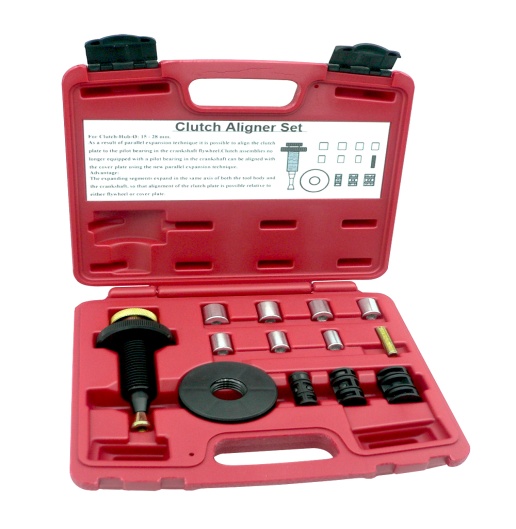

Clutch Aligner

Description:

* For Clutch-Hub-Ø: 15 - 28 mm.

* As a result of parallel expansion technique it is possible to align the clutch plate to the pilot bearing in the crankshaft flywheel.

* Clutch assemblies no longer equipped with a pilot bearing in the crankshaft can be aligned with the cover plate using the new parallel expansion technique.

Advantage:

* The expanding segments expand in the same axis of both the tool body and the crankshaft, so that alignment of the clutch plate is possible relative to either flywheel or cover plate.
