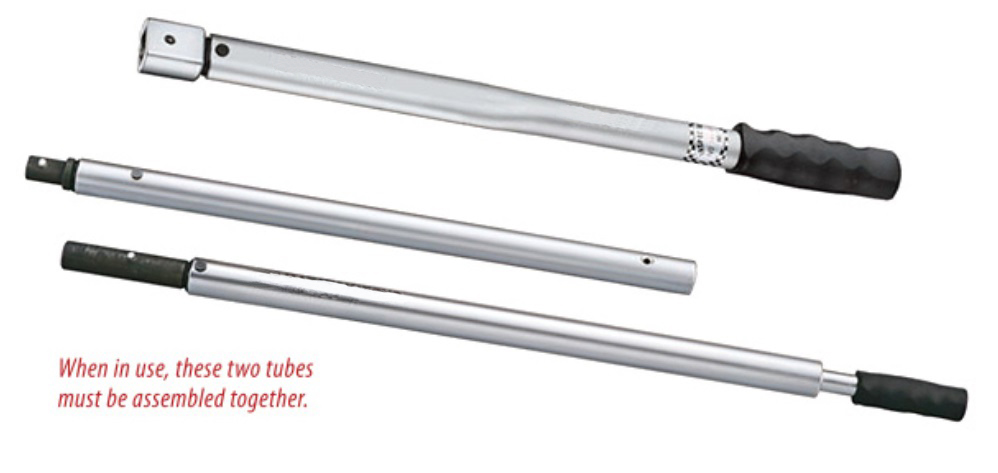

Interchangeable Torque Handle
Adjustable Torque
Metric
Item No. |
mm |
Range |
Length (mm) |
Net weight (kg) |
Packing |
CH181813-12N |
9x12 |
2-12Nm |
188 |
0.22 |
30pcs/ctn |
CH181813-50N |
9x12 |
10-50Nm |
288 |
0.51 |
20pcs/ctn |
CH181813-50NS |
14x18 |
10-50Nm |
293 |
0.51 |
20pcs/ctn |
CH181813-100N |
9x12 |
20-100Nm |
345 |
0.69 |
12pcs/ctn |
CH181813-100NS |
14x18 |
20-100Nm |
350 |
0.69 |
12pcs/ctn |
CH181813-200N |
14x18 |
50-200Nm |
480 |
1.25 |
10pcs/ctn |
CH181813-3002 |
14x18 |
80-300Nm |
510 |
3.55 |
6pcs/ctn |
CH181813-500N |
14x18 |
100-500Nm |
650 |
5.80 |
4pcs/ctn |
Item No. |
mm |
Range |
Length (mm) |
Net weight (kg) |
Packing |
CH181813-800N |
20x28.5 |
150-800Nm |
900 |
6.30 |
2pcs/ctn |
CH181813-1200N |
20x28.5 |
240-1200Nm |
1380 |
8.80 |
1pcs/ctn |
CH181813-1500N |
20x28.5 |
300-1500Nm |
1580 |
11.45 |
1pcs/ctn |
SAE
Item No. |
mm |
Range |
Length (mm) |
Net weight (kg) |
Packing |
CH181813-120i |
9x12 |
20-120in.lb |
188 |
0.22 |
30pcs/ctn |
CH181813-40F |
9x12 |
4-40ft.lb |
288 |
0.51 |
20pcs/ctn |
CH181813-45FS |
14x18 |
4-40ft.lb |
293 |
0.51 |
20pcs/ctn |
CH181813-80F |
9x12 |
10-80ft.lb |
345 |
0.69 |
20pcs/ctn |
CH181813-80FS |
14x18 |
10-80ft.lb |
350 |
0.69 |
20pcs/ctn |
CH181813-150F |
14x18 |
40-150ft.lb |
480 |
1.25 |
10pcs/ctn |
CH181813-230F |
14x18 |
60-230ft.lb |
510 |
3.55 |
6pcs/ctn |
CH181813-400F |
14x18 |
80-400ft.lb |
650 |
5.80 |
4pcs/ctn |
Item No. |
Mm |
Range |
Length (mm) |
Net weight (kg) |
Packing |
CH181813-600F |
20x28.5 |
120-600ft.lb |
900 |
6.30 |
2pcs/ctn |
CH181813-800F2 |
20x28.5 |
150-800ft.lb |
1380 |
8.80 |
1pcs/ctn |
CH181813-1000F |
20x28.5 |
200-1000ft.lb |
1580 |
11.45 |
1pcs/ct |
Industrial application:
*Accuracy: CW+-4%, CCW+-6%
*Easy and flexible operation of design.
*A variety of types and wide torque range of choice.
*Torque range: 1Nm-2000Nm (10in.lb-1500ft.lb).
*Torque setting types: adjustable torque type, pre-set torque type and fixed torque type.
*CW / CCW direction.
*Supplied in a plastic blow / blow case.
¡@
¡@
¡@
¡@
