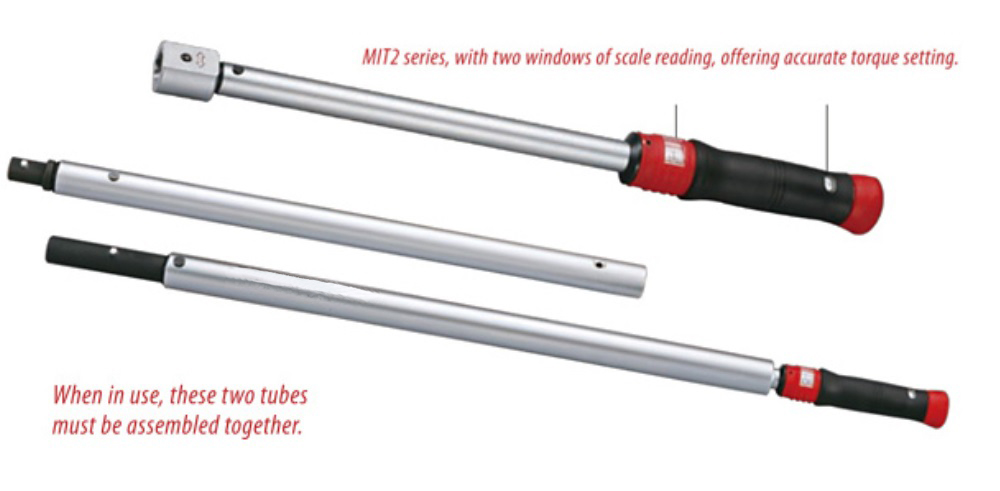

Interchangeable Torque Handle
Adjustable Torque
Metric
Item No. |
mm |
Range |
Scale |
Length (mm) |
Net weight (kg) |
Packing |
CH181814-15N2 |
9x12 |
3-15Nm |
0.2Nm |
188 |
0.34 |
30pcs/ctn |
CH181814-30N2 |
9x12 |
6-30Nm |
0.2Nm |
290 |
0.58 |
20pcs/ctn |
CH181814-60N2 |
9x12 |
12-60Nm |
0.25Nm |
424 |
0.90 |
20pcs/ctn |
CH181814-100N2 |
9x12 |
20-100Nm |
0.5Nm |
459 |
1.40 |
12pcs/ctn |
CH181814-100NS2 |
14x18 |
20-100Nm |
0.5Nm |
464 |
1.41 |
12pcs/ctn |
CH181814-200N2 |
14x18 |
40-200Nm |
1Nm |
483 |
2.10 |
10pcs/ctn |
CH181814-300N2 |
14x18 |
60-320Nm |
2Nm |
552 |
2.20 |
6pcs/ctn |
CH181814-500N2 |
14x18 |
100-500Nm |
4Nm |
794 |
3.50 |
4pcs/ctn |
Item No. |
mm |
Range |
Scale |
Length (mm) |
Net weight (kg) |
Packing |
CH181814-800N2 |
20x28.5 |
100-800Nm |
5Nm |
1101 |
5.38 |
2pcs/ctn |
CH181814-1000N2 |
20x28.5 |
200-1000Nm |
5Nm |
1325 |
6.00 |
2pcs/ctn |
CH181814-1500N2 |
20x28.5 |
300-1500Nm |
10Nm |
1555 |
11.70 |
1pcs/ctn |
CH181814-2000N2 |
20x28.5 |
400-2000Nm |
10Nm |
2026 |
12.90 |
1pcs/ctn |
SAE
Item No. |
mm |
Range |
Scale |
Length (mm) |
Net weight (kg) |
Packing |
CH181814-150i2 |
9x12 |
30-150in.lb |
2in.lb |
188 |
0.34 |
30pcs/ctn |
CH181814-250i2 |
9x12 |
50-250in.lb |
2in.lb |
290 |
0.58 |
20pcs/ctn |
CH181814-45F2 |
9x12 |
9-45ft.lb |
0.25ft.lb |
424 |
0.90 |
20pcs/ctn |
CH181814-75F2 |
9x12 |
15-75ft.lb |
0.5ft.lb |
459 |
1.40 |
12pcs/ctn |
CH181814-75FS2 |
14x18 |
15-75ft.lb |
0.5ft.lb |
464 |
1.41 |
12pcs/ctn |
CH181814-150F2 |
14x18 |
30-150ft.lb |
0.5ft.lb |
483 |
2.10 |
10pcs/ctn |
CH181814-230F2 |
14x18 |
60-230ft.lb |
1ft.lb |
552 |
2.20 |
6pcs/ctn |
CH181814-300F |
14x18 |
60-300ft.lb |
2.5ft.lb |
794 |
3.50 |
4pcs/ctn |
Item No. |
mm |
Range |
Scale |
Length (mm) |
Net weight (kg) |
Packing |
CH181814-600FS2 |
20x28.5 |
100-600ft.lb |
2.5ft.lb |
1101 |
5.38 |
2pcs/ctn |
CH181814-700F2 |
20x28.5 |
150-700ft.lb |
2.5ft.lb |
1325 |
6.00 |
2pcs/ctn |
CH181814-1000F2 |
20x28.5 |
200-1000ft.lb |
5ft.lb |
1555 |
11.70 |
1pcs/ctn |
CH181814-1500F2 |
20x28.5 |
300-1500ft.lb |
5ft.lb |
2026 |
12.90 |
1pcs/ctn |
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@
