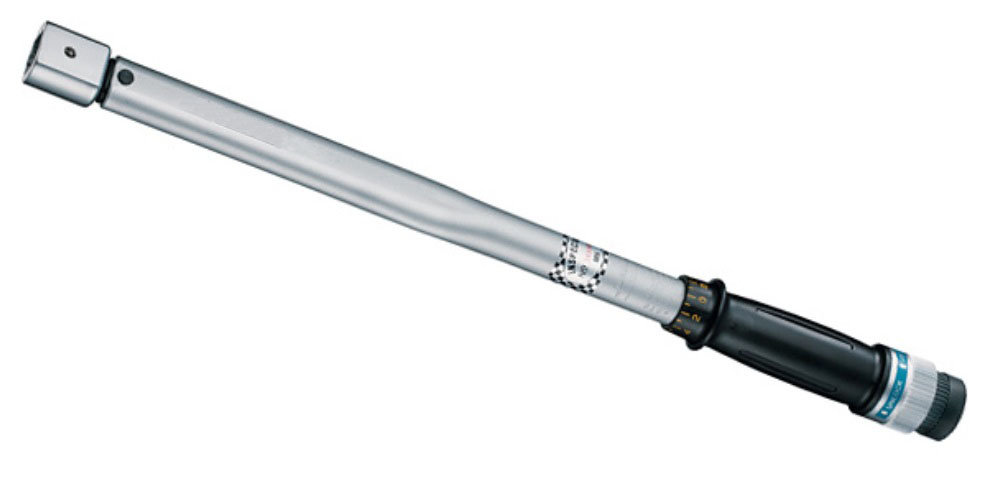

Interchangeable Torque Handle
Adjustable Torque
Metric
Item No. |
mm |
Range |
Scale |
Length (mm) |
Net weight (kg) |
Packing |
CH181815-30N |
9x12 |
6-30Nm |
0.2Nm |
280 |
0.75 |
20pcs/ctn |
CH181815-80N |
9x12 |
15-80Nm |
0.5Nm |
355 |
0.88 |
20pcs/ctn |
CH181815-80NS |
14x18 |
15-80Nm |
0.5Nm |
360 |
0.90 |
20pcs/ctn |
CH181815-110N |
9x12 |
20-110Nm |
0.5Nm |
368 |
0.94 |
12pcs/ctn |
CH181815-110NS |
14x18 |
20-110Nm |
0.5Nm |
373 |
0.96 |
12pcs/ctn |
CH181815-210N |
14x18 |
40-210Nm |
1Nm |
509 |
1.50 |
12pcs/ctn |
SAE
Item No. |
mm |
Range |
Scale |
Length (mm) |
Net weight (kg) |
Packing |
CH181815-250i |
9x12 |
50-250in.lb |
1in.lb |
280 |
0.75 |
20pcs/ctn |
CH181815-60F |
9x12 |
10-60ft.lb |
0.5ft.lb |
355 |
0.88 |
20pcs/ctn |
CH181815-60FS |
14x18 |
10-60ft.lb |
0.5ft.lb |
360 |
0.90 |
20pcs/ctn |
CH181815-80F |
9x12 |
15-80ft.lb |
0.5ft.lb |
368 |
0.94 |
12pcs/ctn |
CH181815-80FS |
14x18 |
15-80ft.lb |
0.5ft.lb |
373 |
0.96 |
12pcs/ctn |
CH181815-150F |
14x18 |
30-150ft.lb |
1ft.lb |
509 |
1.50 |
10pcs/ctn |
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@
