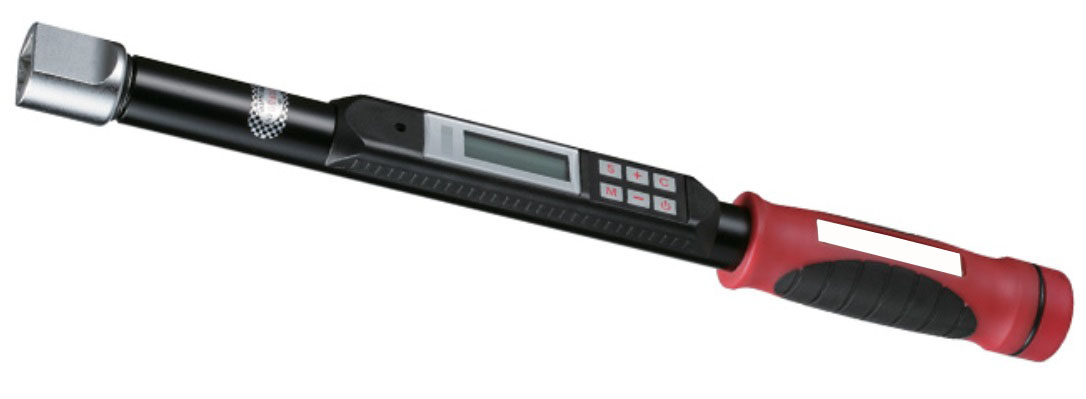

Digital Interchangeable Torque Handle Adjustable torque

Chih Tai Y&S Co., Ltd.

No.20, Lane 70, Sec.5, Yang-Hai Rd., Fu-Hsing Hsiang, Changhua, Taiwan

Tel:886-4-7764112 7771377 Fax: 886-4-7771692

P.O.Box: 107 Lukang E-mail: chihtai@ms16.hinet.net

Digital Interchangeable Torque Handle Adjustable torque
　

Item No.	mm	Range	L (mm)	Net weight (kg)	Packing
CH181820-DB1	14x18	10-100Nm	420	0.84	12pcs/ctn
CH181820-DB2	14x18	20-200Nm	550	1.15	6pcs/ctn

*Accuracy: +-1%

*Memory: 10 readings

*Unit selection: Nm, ft.lb, in.lb, kg-m

*Operating temperature: -10 degree C – 55 degree C

*Storage temperature: -40 degree C – 85 degree C

*RS-232 data out

*Humidity: 0~90%

*Battery: 1.5V AA batteries x 3 (Do not use low self-discharge battery)

*Warranty: 1 year in normal statement.
