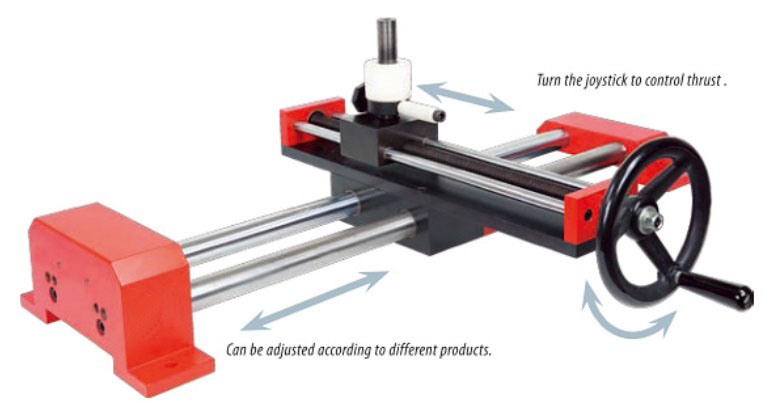

Torque Wrench Loader
¡@
Item No. |
Dimension (mm) |
Operating Range |
Net weight (kg) |
Packing | |
Min (mm) |
Max (mm) | ||||
CH181839-8M |
800 |
180 |
800 |
73.94 |
1pc/ctn |
CH181839-15M |
1500 |
180 |
1500 |
83.86 |
1pc/ctn |
Specifications:
*Accuracy: +-1%
*Display: 5 digits, 7 segment LED (update rate of 5 per second)
*Nm, ft.lb, in.lb, kg-m are interchangeable.
*Mode: Track, Auto reset, Hold
*Tamp. Range-operating: +5 degree C to + 40 degree C.
*Temp. range-storage: -20 degree C to + 70 degree C.
*Sampling rate: 333 SPS.
*Auto reset hold time: 2 seconds (Auto reset mode).
*RS-232 Data out
*Direction: C.W., C.C.W.
*Calibration: according to BS7882 : 2008 method.
¡@
¡@
¡@
¡@
